SY7656-4L SY7656

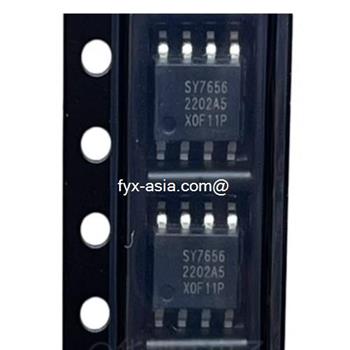

Lithium battery charging IC chip SY7656 PMIC

The SY7656 is a single-chip solution IC designed specifically for small-capacity lithium battery charging/discharging applications. It integrates a linear charging management module with a charging current of 1.0A and a synchronous boost discharging management module with a maximum discharging current of 1.0A, with built-in power MOSFETs. The SY7656 also integrates battery level detection, LED status indication module, and button function module, providing a simple and easy-to-use solution for small-capacity lithium batteries (lithium-ion or lithium-polymer).

The SY7656 offers two customized solutions for the KEY button, discharge module power on/off, and other functions, making it convenient for customers to choose and use. The SY7656 is packaged in an ESOP8 form.

Features of SY7656

- **Linear Charging**: 1.0A charging current

- **Three-Stage Charging**: Trickle/constant current/constant voltage

- **Intelligent Temperature Regulation**: Automatically adjusts charging current based on temperature

- **Preset 4.2V Charging Float Voltage**: Accuracy up to ±1%

- **High Discharge Efficiency**: Up to 92%

- **Synchronous Boost Output**: 5.1V with a discharge switch frequency of 1MHz

- **Discharge Cutoff Current**: 10mA

- **Unique Boost Output Thermal Regulation**

- **Protection Features**: Overcurrent, short circuit, overvoltage, and overtemperature protection for the discharge module

Key Button and LED Indicator, Customizable Versions and Functions

• SY7656_2L:

  • No need to connect a KEY button, boost output is always on.
  • Automatically turns off LED display in light load.
  • 2 LEDs indicating charging/discharging status.

• SY7656_KEY2L:

  • Single click on the KEY button to display battery level and start/stop boost.
  • Auto-shutdown function (VOUT drops to 0V).
  • 2 LEDs indicating charging/discharging status.

• SY7656_4L:

  • No need to connect a KEY button, boost output is always on.
  • Automatically turns off LED display in light load.
  • 4 LEDs indicating charging/discharging status.

• SY7656_KEY4L:

  • Single click on the KEY button to display battery level and start/stop boost.
  • Auto-shutdown function (VOUT drops to 0V).
  • 4 LEDs indicating charging/discharging status.
