- Technical Parameter

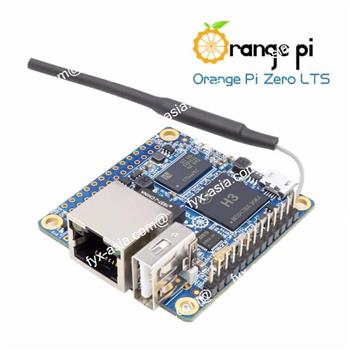

Orange Pi Zero LTS uses the AllWinner H3 SoC, and has 256MB/512MB DDR3 SDRAM(256MB version is Standard version), It integrates TF card,100 Ethernet network, USB 2.0, 26Pin headers, and is powered through USB OTG.
| Datasheet | |
|---|---|
| No Data | |
- Commodity Description
Hardware specification
| CPU | H3 Quad-core Cortex-A7 H.265/HEVC 1080P. |
| GPU | • Mali400MP2 GPU @600MHz • Supports OpenGL ES 2.0 |
| Memory (SDRAM) | 256MB/512MB DDR3 SDRAM(Share with GPU)(256MB version is Standard version) |
| Onboard Storage | TF card (Max. 32GB)/ 2MB Spi Flash |
| Onboard Network | 10/100M Ethernet RJ45 POE is default off. |
| Onboard WiFi | XR819, IEEE 802.11 b/g/n |
| Audio Input | MIC(via 13 pins external board ) |
| Video Outputs | AV OUT(via 13 pins external board) |
| Power Source | USB OTG can supply power |
| Low-level peripherals | • 26 Pins Header, • 13 Pins Header, with 2x USB, IR pin, AUDIO(MIC, AV) |
| LED | Power led & Status led |
| Supported OS | Android, Lubuntu, Debian |
Interface definition
| Product size | 48 mm × 46mm |
| Weight | 26g |
