- Technical Parameter
Appearance specification introduction
| Dimension | 53mm×60mm |
| Weight | 30g |
| Datasheet | |
|---|---|
| No Data | |
- Commodity Description

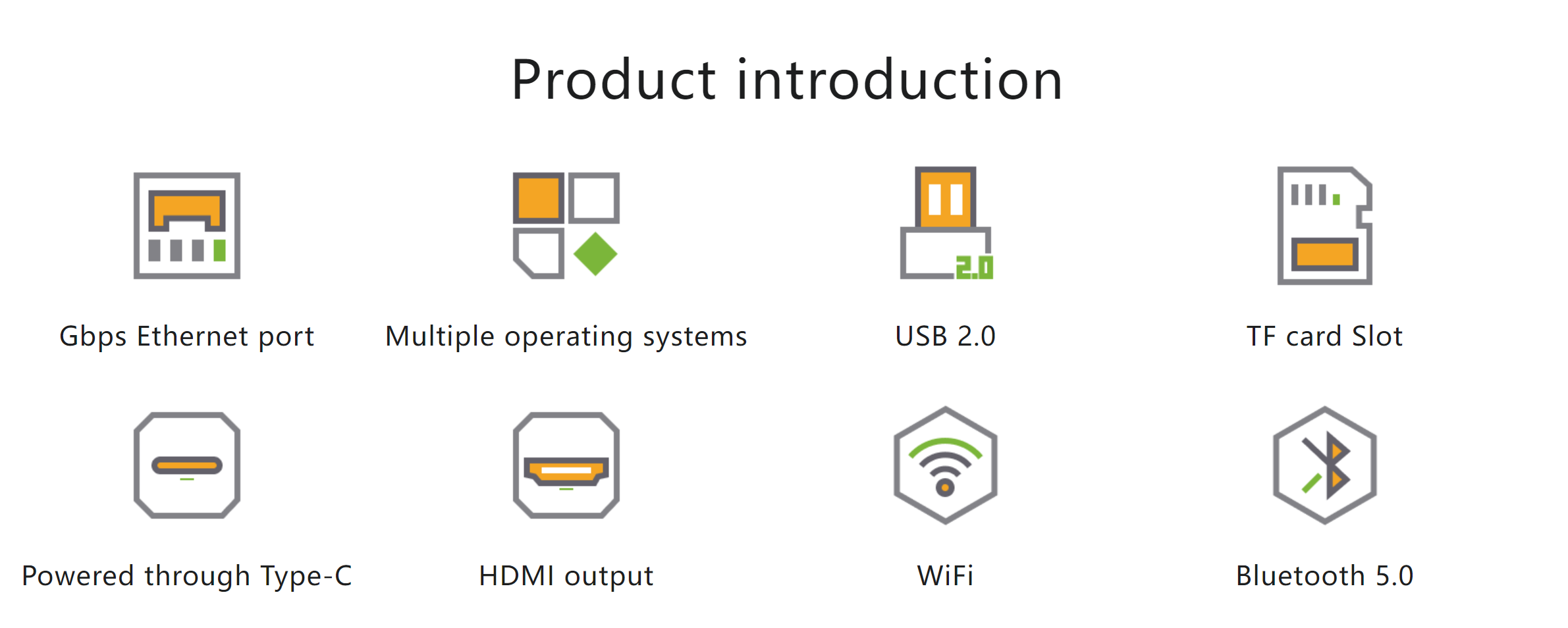

Hardware specification
| CPU | Allwinner H616 64-bit high-performance Quad-core Cortex-A53 processor |
| GPU | • Mali G31 MP2 • Supports OpenGL ES 1.0/2.0/3.2、OpenCL 2.0 |
| Video decoding | • H.265 Main10@L5.1 decoder up to 4K@60fps or 6K@30fps • VP9 Profile 2 decoder up to 4K@60fps • AVS2 JiZhun 10bit decoder up to 4K@60fps • H.264 BP/MP/HP@L4.2 decoder up to 4K@30fps |
| Video encoding | • H.264 BP/MP/HP encoder up to 4K@25fps or 1080p@60fps • JPEG snapshot performance of 1080p@60fps |
| Memory(SDRAM) | 512MB/1GB DDR3 (Shared with GPU） |
| Onboard Storage | • TF card slot • 2MB SPI Flash |
| Onboard Network | Support 1000M/100M/10M Ethernet |
| Onboard WiFi+BT | • AW859A Chip • Support IEEE 802.11 a/b/g/n/ac • Support BT5.0 |
| Video Outputs | • Micro HDMI 2.0a up to 4K@60fps • TV CVBS output, Support PAL/NTSC（Via 13pin interface board） |
| Audio output | • Micro HDMI • 3.5mm audio port (Via 13pin interface board) |
| Power Source | Type-C interface 5V3A input |
| USB 2.0 Ports | 3*USB 2.0 HOST（Two of them are via 13pin interface board） |
| Low-level peripherals | • 26pin header with I2C, SPI, UART and multiple GPIO ports • 13pin header with 2*USB Host, IR pin, Tv-out、AUDIO (no MIC) and 3 GPIO ports |
| Debug serial port | UART-TX、UART-RX and GND |
| LED | Power led & Status led |
| IR receiver | Support IR remote control (via 13pin interface board) |
| Supported OS | Android10、Ubuntu、Debian |
