- Technical Parameter
Appearance specification introduction

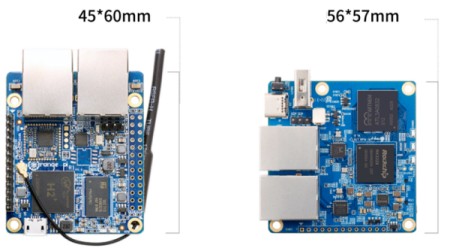

| Dimension | 56mm×57mm |
| Weight | 29.5g |
| Datasheet | |
|---|---|
| No Data | |
- Commodity Description

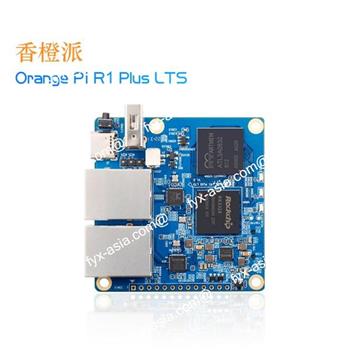

Orange Pi R1 Plus LTS uses the Rockchip RK3328 SoC, Quad-Core ARM Cortex-A53 64-Bit Processor, Main Frequency Speeds Up To 1.5GHz and 1GB LPDDR3 SDRAM. It integrates cooling fan connector, USB 2.0 port, TF card slot, 13pin headers etc. It is powered through Type-C. It is suitable for industrial control needs.
Orange Pi R1 Plus LTS is for anyone who wants to start
creating with technology - not just consuming it. lt's a
simple, fun, useful tool that you can use to start taking
control of the world around you.
Hardware specification
| CPU | • Rockchip RK3328 • Quad-Core ARM Cortex-A53 64-Bit Processor, Main Frequency Speeds Up To 1.5GHz |
| GPU | • Mali-450MP2 • Supports OpenGL ES 1.0/2.0 |
| Power management chip | RK805 |
| Memory(SDRAM) | 1GB LPDDR3(Not Shared With GPU) |
| Onboard Storage | • Micro-SD Card slot • 16MB SPI Flash |
| Onboard Network | • 10M/100M/1000M Ethernet (YT8531C) • 10M/100M/1000M USB Ethernet (RTL8153B) |
| Video Output | TV CVBS output（Via 13pin interface board） |
| Audio output | 3.5mm audio port（Via 13pin interface board） |
| Power Source | USB Type-C Interface 5V/2A Input |
| USB | 1x USB 2.0 HOST |
| Low-level peripherals | 13pin header with IR pin、Tv-out、AUDIO(no MIC), 2xUSB2.0（not support）and 1 GPIO port Note: 13Pin Headers Will Not Be Welded |
| Debug serial port | UART-TX、UART-RX and GND |
| Button | 1x Reset Button |
| Fan interface | 1x cooling fan interface (5V) |
| LED | Power LED & Status LED |
| Supported OS | OpenWRT、Ubuntu、Debian |
