- Technical Parameter

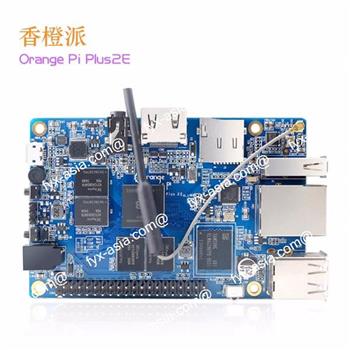

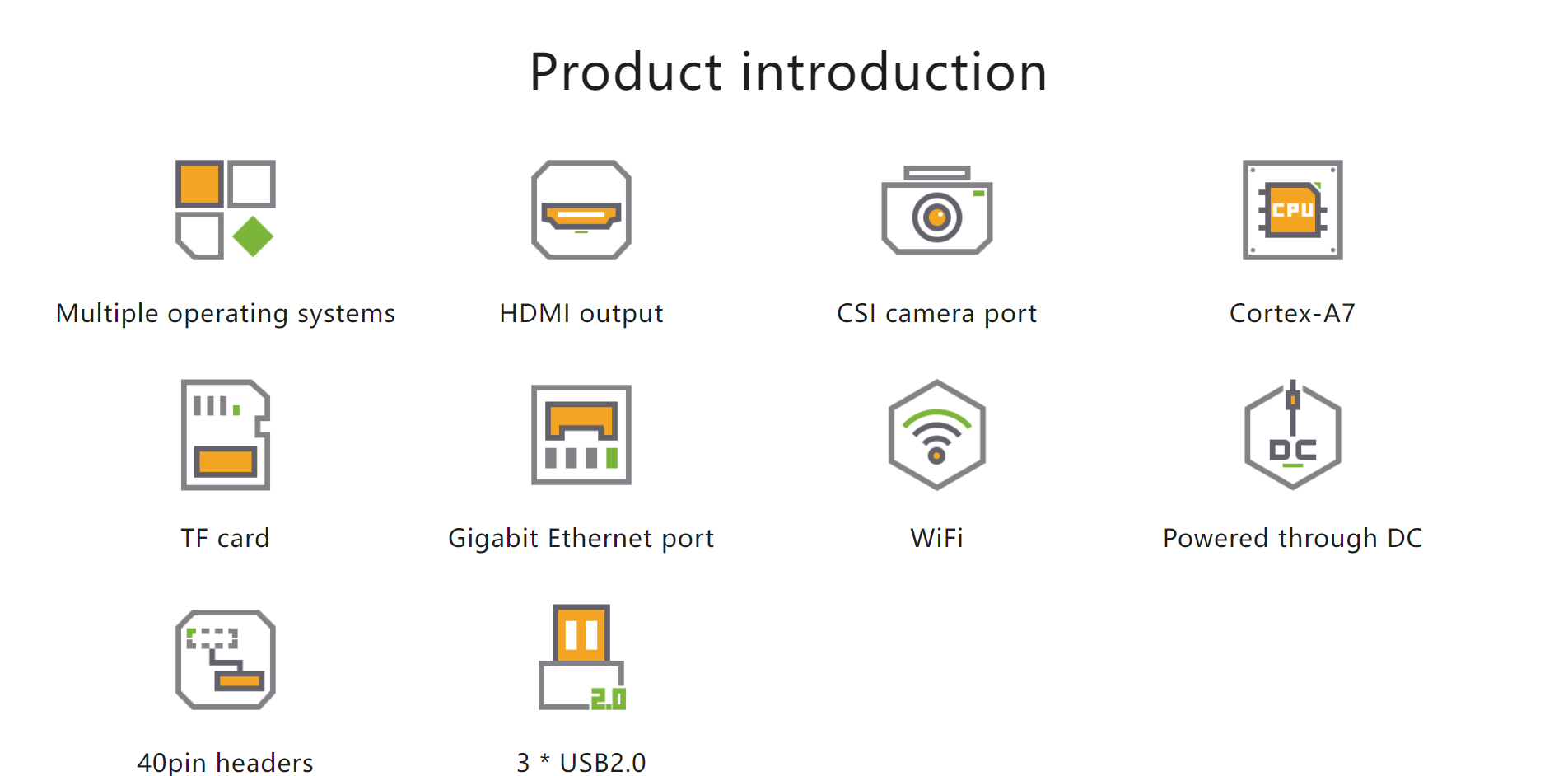

Orange Pi Plus 2E uses the AllWinner H3 SoC with Quad-core Cortex-A7, and has 2GB DDR3 SDRAM with 16GB EMMC Flash. It integrates Gigabit Ethernet port, HDMI output, CSI camera port,USB 2.0 port, TF card slot, 40pin headers,etc. It is powered through DC.
| Datasheet | |
|---|---|
| No Data | |
- Commodity Description
Hardware specification
| CPU | H3 Quad-core Cortex-A7 H.265/HEVC 4K |
| GPU | • Mali400MP2 GPU @600MHz • Supports OpenGL ES 2.0 |
| Memory (SDRAM) | 2GB DDR3 (shared with GPU) |
| Onboard Storage | • TF card (Max. 32GB) • 16GB eMMC Flash |
| Onboard Network | 10/100/1000M Ethernet RJ45 |
| Onboard WiFi | Realtek RTL8189ETV, IEEE 802.11 b/g/n |
| Video Input | • A CSI input connector camera: • Supports 8-bit YUV422 CMOS sensor interface • Supports CCIR656 protocol for NTSC and PAL • Supports SM pixel camera sensor • Supports video capture solution up to 1080p@30fps |
| Audio Input | MIC |
| Video Outputs | • Supports HDMI output with HDCP • Supports HDMI CEC • Supports HDMI 30 function • Integrated CVBS • Supports simultaneous output of HDMI and CVBS |
| Audio Output | 3.5 mm Jack and HDMI |
| Power Source | DC input can supply power, but USB OTG input don’t supply power |
| USB 2.0 Ports | Three USB 2.0 HOST, one USB 2.0 OTG |
| Buttons | Power Button(SW4), Recovery Button(SW3), Uboot Button(SW2) |
| Low-level peripherals | 40 Pins Header |
| GPIO(1x3) pin | UART, Ground. |
| LED | Power led & Status led |
| Other | IR input |
| Supported OS | Android, Ubuntu, Debian |
Interface definition
| Product size | 60mm × 93mm |
| Weight | 83g |
