- Technical Parameter

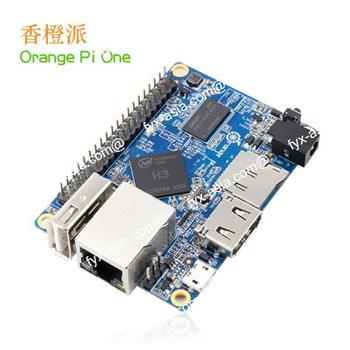

Orange Pi One is for anyone who wants to start creating
with technology- not just consuming it. lt's a simple, fun,
useful tool that you can use to start taking control of the
world around you.
| Datasheet | |
|---|---|
| No Data | |
- Commodity Description

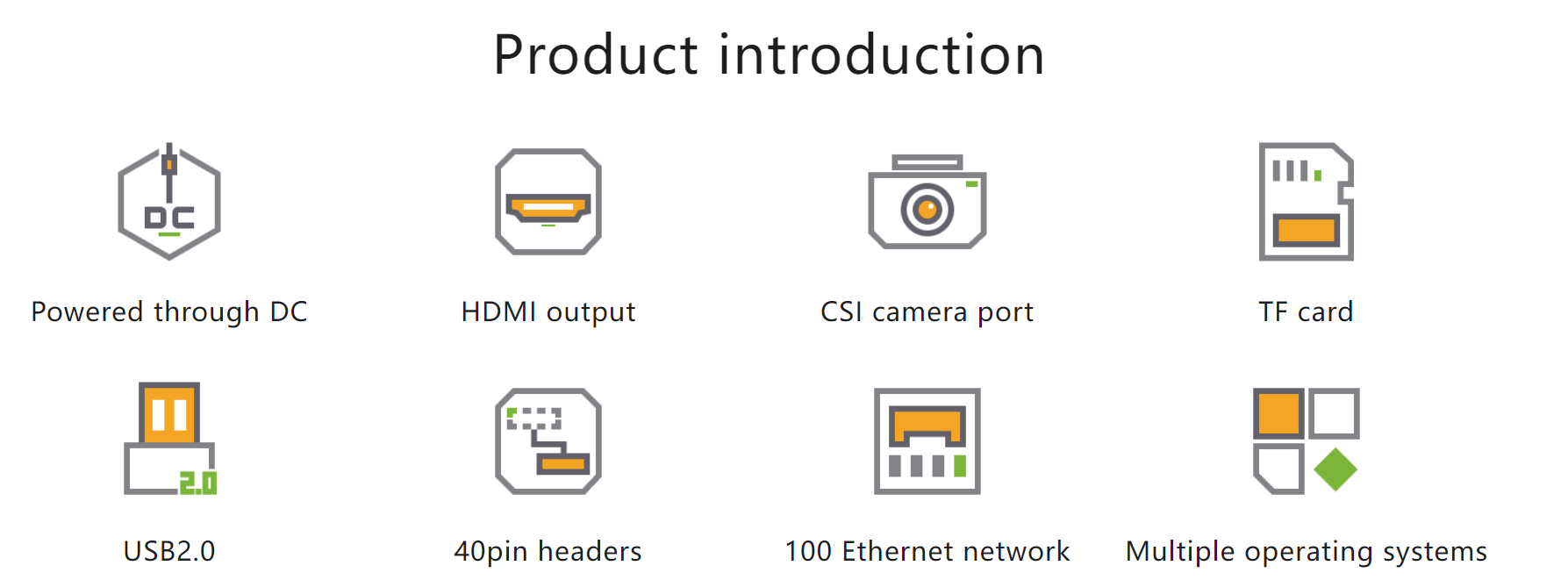

Hardware specification
| CPU | H3 Quad-core Cortex-A7 H.265/HEVC 4K |
| GPU | • Mali400MP2 GPU @600MHz • Supports OpenGL ES 2.0 |
| Memory (SDRAM) | 512MB/1GB DDR3 (shared with GPU) |
| Onboard Storage | TF card (Max. 32GB) / MMC card slot |
| Onboard Network | 10/100M Ethernet RJ45 |
| Video Input | • A CSI input connector Camera: • Supports 8-bit YUV422 CMOS sensor interface • Supports CCIR656 protocol for NTSC and PAL • Supports SM pixel camera sensor • Supports video capture solution up to 1080p@30fps |
| Video Outputs | • Supports HDMI output with HDCP • Supports HDMI CEC • Supports HDMI 30 function • Supports simultaneous output of HDMI |
| Power Source | DC input can supply power, but USB OTG input don’t supply power |
| USB 2.0 Ports | Only One USB 2.0 HOST, one USB 2.0 OTG |
| Buttons | Power Button(SW4) |
| Low-level peripherals | 40 Pins Header |
| LED | Power led & Status led |
| Key | POWER |
| Supported OS | Android Ubuntu, Debian Image |
Interface definition
| Product size | 69 mm × 48mm |
| Weight | 36g |
