- Technical Parameter
Interface definition
| Size | 52mm × 68mm |
| Weight | 25.5g |

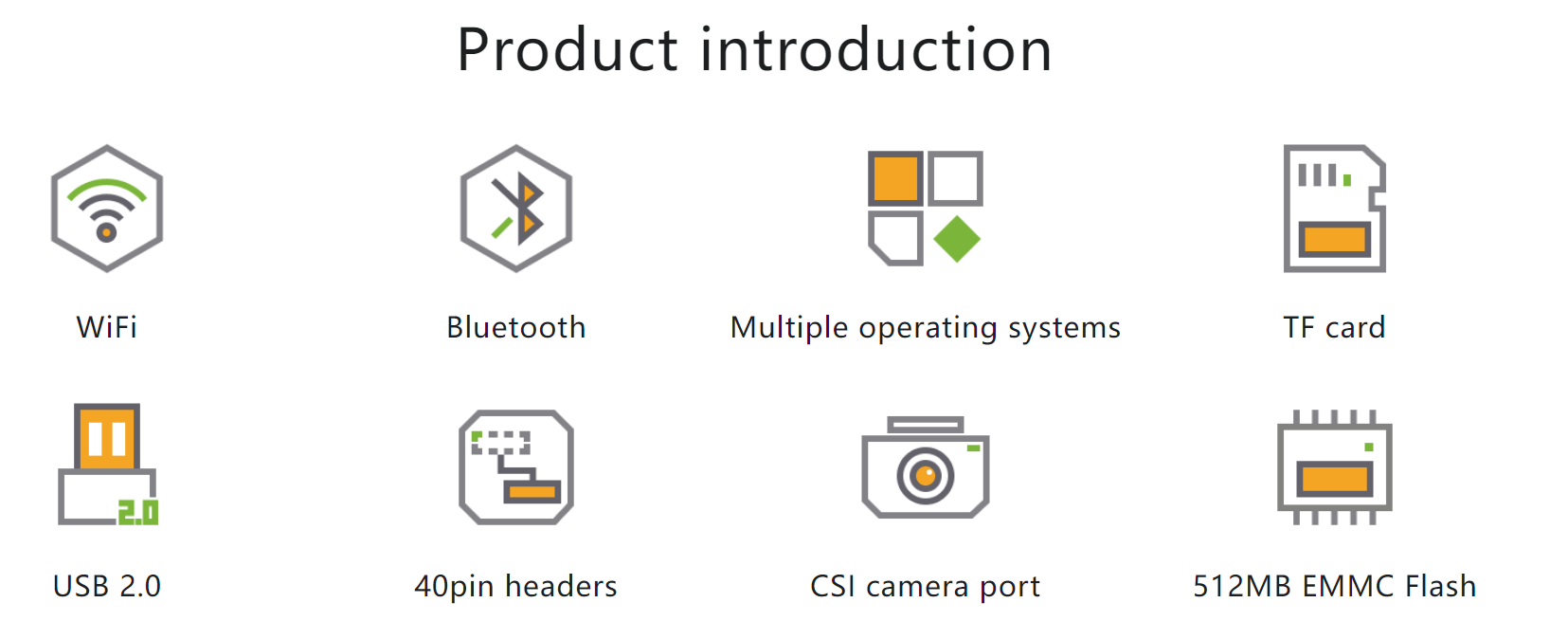

Orange Pi 3G-IoT-B uses t uses the MTK serial of MT6572 SoC with dual Core ARM® Cortex-A7, main frequency up to 1.2GHz, and has 512MB DDR2 with 4GB EMMC Flash. It offers a range of different ports, including 40pin headers, USB 2.0, CSI camera port, TF card slot, etc. It can run Android 4.4 Image.
| Datasheet | |
|---|---|
| No Data | |
- Commodity Description
Hardware specification
| Processor | MT6572 |
| CPU | Dual Core ARM® Cortex-A7, Main frequency up to 1.2GHz |
| GPU | ARM Mali-400MP1 GPU |
| Memory | 512MB DDR2 |
| Emmc | 4GB EMMC Flash |
| Wireless | WiFi / BT / FM / GPS Four in one |
| Radio frequency | • GSM: 850/900/1800/1900 • WCDMA: B1/B2/B5/B8 • TD-CDMA • CDMA2000 |
| Display | FWVGA(FPC zif Connector) |
| Capacitance touch | Support (FPC zif Connector) |
| Camera | MIPI Connector |
| SIM Card | mini Single SIM Card |
| TF Card | Support hot-plugging |
| Audio | • Earphone: For audio input / output • Mic: For audio input |
| USB | One USB Host, one Micro USB |
| LED | Red for power indicator, Green for status indicator |
| Key | Power button(SW602) |
| Low-level peripherals | 40pin Expansion Headers: GPIO 1.8V, SPI × 2 , I2C × 3, UART×2 |
| Power Supply | Micro USB(5V/2A)，Battery(Optional) |
| OS | Android 4.4 |
| Programming support | C, C++, Kotlin, Java, Shell, Python, etc |
